K102425
Slack Adjuster (Automatic)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

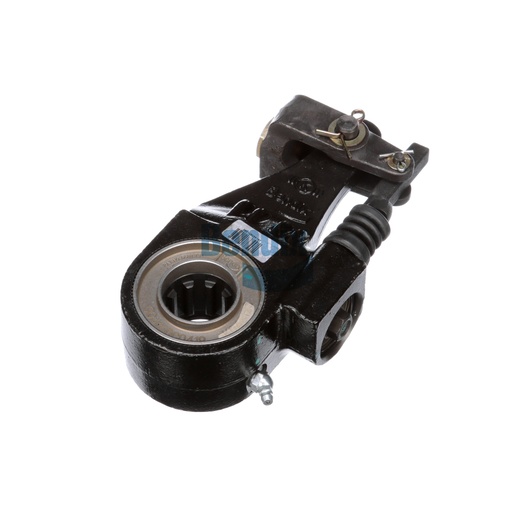

The Automatic Slack Adjuster from Bendix is an innovative component that ensures consistent brake performance by automatically adjusting the brake shoes as they wear. This link-style slack adjuster is engineered with a robust torque rating of 20,000 IN LBS, making it suitable for heavy-duty applications. Its easy-on clevis style and durable construction allow for a straightforward installation and reliable operation over time. With an arm length of 5.50 inches, this slack adjuster provides precise control for optimal brake activation. For those looking for reliable Bendix OEM parts, Source One Parts Center is your best option, offering authentic components that enhance safety and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Adaptor Length
.78 IN (19.8 MM)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Length
114.7 mm (4.52 in)
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
20,000 IN LBS
Height
212.0 mm (8.35 in)
Lube Fitting Type
45° Elbow
Arm Length 1
5.50 IN
Adaptor Size
5/8-18 UNF-2B
Width
51.3 mm (2.02 in)
Harmonized System (HS) Code
870830
Clevis / Yoke Style
Easy-On (EO) - 5/8 IN Offset
Country of Origin
India
Product Type
Link Style
Arm Offset
No Offset
Arm Bushing(s)
Ø .50 IN (Ø 12.7 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
7.05 lb
