278295

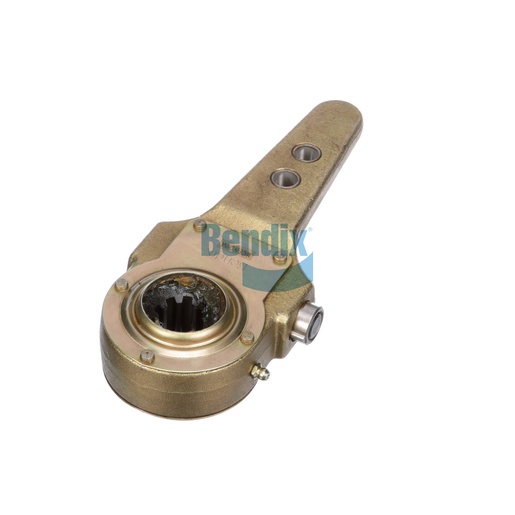

Slack Adjuster (Manual)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Slack Adjuster (Manual) is a crucial component for maintaining proper brake adjustment in your truck's braking system. This manual slack adjuster allows for straightforward adjustments to ensure that your brakes function efficiently, providing optimal stopping power when needed. Engineered for durability and reliability, it is designed to withstand the rigors of heavy-duty applications. Regular maintenance and adjustment of the slack adjuster are essential for optimal brake performance and safety. By choosing a Bendix Manual Slack Adjuster, you invest in the longevity of your braking system. Source One Parts Center is the best destination for sourcing genuine Bendix OEM parts, ensuring your vehicle remains safe and efficient on the road.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Arm Offset
0.625 IN (Left Hand)
VMRS
013-017-005: Slack Adjuster - Manual, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
26,000 IN LBS
Arm Length 2
4.50 IN
Arm Length 1
5.50 IN
Harmonized System (HS) Code
870839,870830
Country of Origin
China
Product Type
Manual - Type 26
Lube Fitting Type
Straight
Arm Bushing(s)
Ø .50 IN (Ø 12.7 MM)
Spline Diameter - Teeth
Ø 1.25 IN - 10 Spline
Weight
4.34 lb
