279350

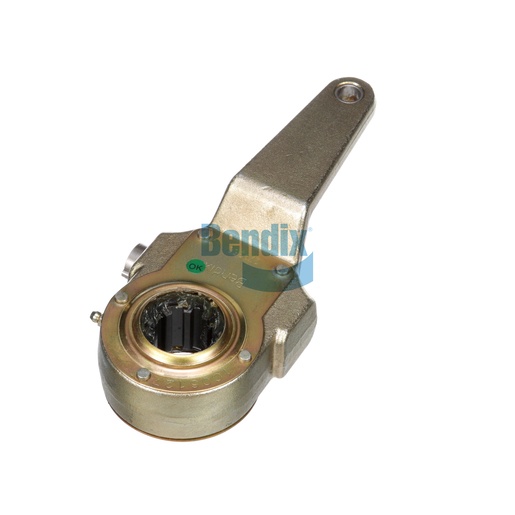

Slack Adjuster (Manual)
Bendix
IN STOCK
More than 10 are currently available
Ships within 1 business day
$194.95
$233.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Manual Slack Adjuster from Bendix is an essential component for optimizing brake performance in heavy-duty applications. This adjuster allows for precise control over brake shoe positioning, ensuring that your braking system operates efficiently and effectively. With a torque rating of 20,000 IN LBS, it is built to withstand rigorous conditions while providing reliable adjustments when needed. The design features a straight lube fitting for easy maintenance, ensuring longevity and performance. When you choose Source One Parts Center, you can trust that you are getting genuine Bendix OEM parts that guarantee the quality and reliability required for commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-005: Slack Adjuster - Manual, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Arm Offset
1.50 IN (Right Hand)
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
20,000 IN LBS
Arm Length 1
7.00 IN
Harmonized System (HS) Code
870839,870830
Country of Origin
China
Product Type
Manual - Type 20
Lube Fitting Type
Straight
Arm Bushing(s)
Ø .50 IN (Ø 12.7 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
6.37 lb
