$154.95
$185.94

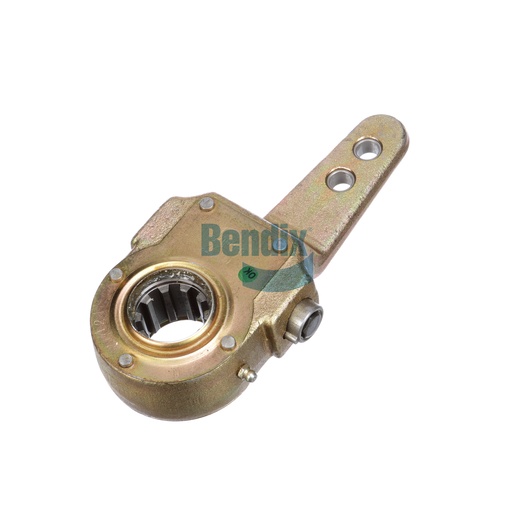

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The manual slack adjuster is a crucial element in maintaining the proper brake adjustment on your commercial vehicle, ensuring safety and optimal performance. This part is designed for heavy-duty applications, with a torque rating of 20,000 inch-pounds, allowing for reliable operation under challenging conditions. Its construction accommodates an arm offset for precise adjustment, contributing to smoother braking and reduced wear on brake components. With a temperature operating range from -40°F to 158°F, this slack adjuster is built to withstand various environmental conditions. When purchasing genuine Bendix OEM parts, Source One Parts Center stands out as the best choice, providing quality components tailored for commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-005: Slack Adjuster - Manual, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Arm Offset
1.50 IN (Right Hand)
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
20,000 IN LBS
Arm Length 2
5.50 IN
Arm Length 1
6.50 IN
Harmonized System (HS) Code
870830
Country of Origin
China
Product Type
Manual - Type 20
Lube Fitting Type
Straight
Arm Bushing(s)
Ø .50 IN (Ø 12.7 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
6.86 lb
