$169.95
$203.94

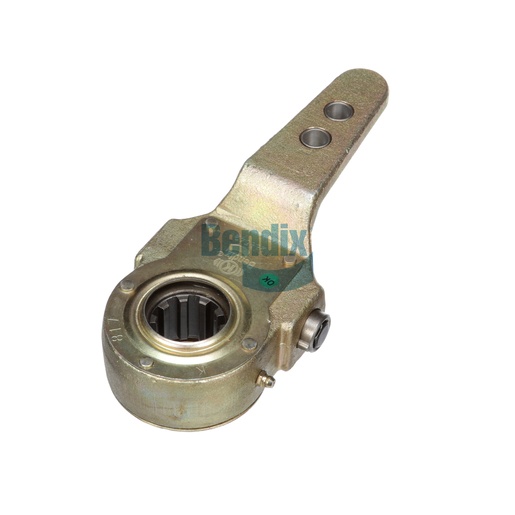

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Manual Slack Adjuster is essential for ensuring the optimal performance of your truck's braking system. This high-quality part features a torque rating of 20,000 IN LBS and is designed for ease of use, allowing for quick adjustments to maintain proper brake shoe clearance. Its robust construction ensures longevity and reliability, even under demanding conditions. With a maximum operating temperature of 158°F and a minimum of -40°F, this slack adjuster is built to withstand the challenges of commercial driving. The offset arm design allows for flexible installation options, making it adaptable to various truck models. For those seeking genuine Bendix OEM parts, Source One Parts Center stands out as the premier choice, ensuring you receive the best quality for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-005: Slack Adjuster - Manual, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Arm Offset
1.50 IN (Left Hand)
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
20,000 IN LBS
Arm Length 2
5.00 IN
Arm Length 1
6.00 IN
Harmonized System (HS) Code
870830
Country of Origin
China
Product Type
Manual - Type 20
Lube Fitting Type
Straight
Arm Bushing(s)
Ø .50 IN (Ø 12.7 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
6.83 lb
