$37.95
$45.54
Minimum Quantity 6
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

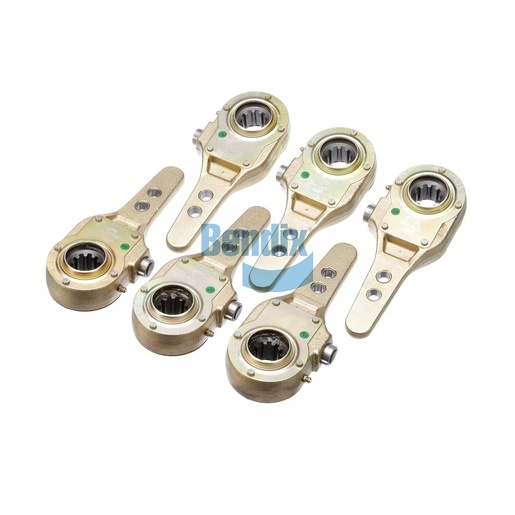

The Bendix Manual Slack Adjuster PL-20 is a critical component for maintaining optimal brake performance in commercial vehicles. This high-quality part ensures that your vehicle's brakes remain properly adjusted, enhancing safety and efficiency while driving. With a torque rating of 26,000 in-lbs, it is designed to withstand the demands of heavy-duty applications, effectively managing brake wear and ensuring longer service life. The slack adjuster features a straight lube fitting design, simplifying maintenance and lubrication processes. Weighing just 4.23 pounds, it is lightweight yet robust, making installation straightforward and hassle-free. By using this slack adjuster, you can enhance the reliability of your braking system, ensuring consistent stopping power. Source One Parts Center is your best choice for authentic Bendix OEM parts, providing the quality and reliability you need for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-005: Slack Adjuster - Manual, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Length
110.0 mm (4.33 in)
Maximum Operating Temperature
158 °F (70 °C)
Height
237.0 mm (9.33 in)
Torque Rating
26,000 IN LBS
Arm Length 2
4.50 IN
Arm Length 1
5.50 IN
Width
51.0 mm (2.01 in)
Harmonized System (HS) Code
870839,870830
Country of Origin
China
Product Type
Manual - Type 26
Arm Offset
No Offset
Lube Fitting Type
Straight
Arm Bushing(s)
Ø .50 IN (Ø 12.7 MM)
Spline Diameter - Teeth
Ø 1.25 IN - 10 Spline
Weight
4.23 lb
