$38.95
$46.74
Minimum Quantity 6
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

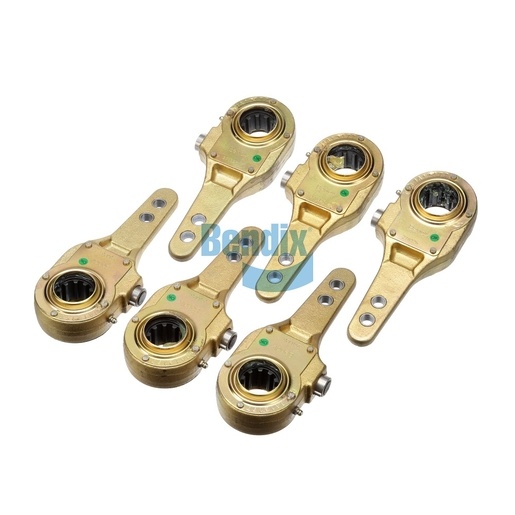

The Bendix Manual Slack Adjuster is engineered to deliver precise control over brake adjustments, enhancing the overall safety and efficiency of your braking system. Designed for manual operation, this adjuster features an arm length of 6.50 inches and a torque rating of 26,000 inch-pounds, ensuring robust performance in demanding conditions. Its durable construction with quality materials guarantees longevity, making it an ideal choice for commercial vehicles. This slack adjuster is designed for easy installation and maintenance, allowing for convenient adjustments to your brake system as needed. For genuine Bendix OEM parts that you can rely on, Source One Parts Center is the best choice for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-005: Slack Adjuster - Manual, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Width
102.0 mm (4.02 in)
Maximum Operating Temperature
158 °F (70 °C)
Height
237.0 mm (9.33 in)
Torque Rating
26,000 IN LBS
Arm Length 2
5.50 IN
Length
51.0 mm (2.01 in)
Arm Length 1
6.50 IN
Harmonized System (HS) Code
870839,870830
Country of Origin
China
Product Type
Manual - Type 26
Arm Offset
No Offset
Lube Fitting Type
Straight
Arm Bushing(s)
Ø .50 IN (Ø 12.7 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
4.98 lb
