286965

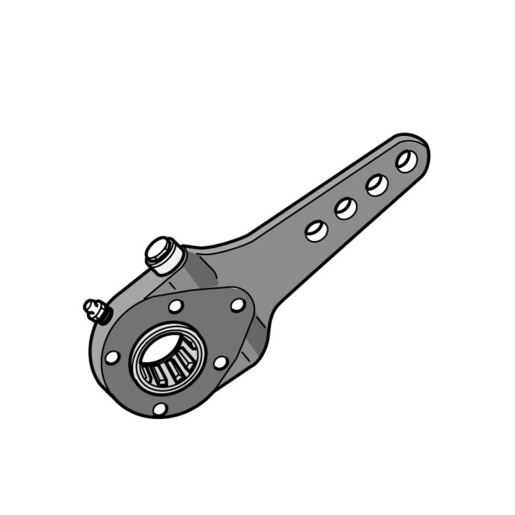

Slack Adjuster (Manual)
Bendix
IN STOCK
More than 10 are currently available
Ships within 1 business day
$62.95
$75.54
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Manual Slack Adjuster is a vital component for ensuring the proper functioning of your truck's braking system. Designed for heavy-duty applications, this adjuster allows for manual adjustment of the brake shoes, providing optimal alignment and performance. With a torque rating of 26,000 IN LBS, it is engineered to withstand the rigors of frequent use, ensuring consistent and reliable operation. Weighing 2.0 kg, its compact design facilitates easy installation and maintenance, making it a favorite among fleet operators and vehicle owners alike. The Manual Slack Adjuster enhances the overall safety and efficiency of your vehicle by ensuring that the brakes engage properly and maintain their effectiveness over time. For those in need of genuine Bendix parts, Source One Parts Center is the premier destination, offering authentic OEM components that guarantee quality and reliability for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-005: Slack Adjuster - Manual, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
26,000 IN LBS
Arm Length 2
5.00 IN
Arm Length 1
6.00 IN
Harmonized System (HS) Code
870830
Country of Origin
China
Product Type
Manual - Type 26
Arm Offset
No Offset
Lube Fitting Type
Straight
Arm Bushing(s)
Ø .50 IN (Ø 12.7 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 28 Spline
Weight
4.33 lb
