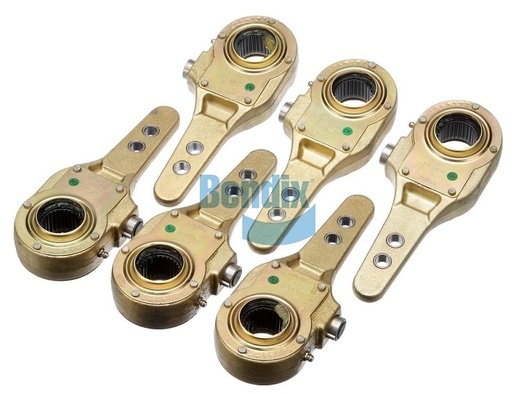

286965N
Slack Adjuster (Manual)
Bendix
AVAILABLE
More than 10 are currently available
Ships within 11-13 business days
$38.95
$46.74
Minimum Quantity 6
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix manual slack adjuster is a critical component for maintaining the performance of your vehicle's braking system. Designed for heavy-duty applications, this slack adjuster helps ensure that your brakes operate efficiently by automatically adjusting the brake shoes as they wear. With a net weight of 2.4 kg, it is built for durability and easy installation, making it an excellent choice for fleet maintenance. Manufactured in China, this slack adjuster meets all necessary quality standards to ensure reliable performance. By investing in this essential part, you can enhance the safety and responsiveness of your vehicle's braking system, ultimately improving overall driving safety. For high-quality Bendix OEM parts, Source One Parts Center is your go-to source, offering components that you can trust.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-005: Slack Adjuster - Manual, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Width
102.0 mm (4.02 in)
Maximum Operating Temperature
158 °F (70 °C)
Height
237.0 mm (9.33 in)
Torque Rating
26,000 IN LBS
Arm Length 2
5.00 IN
Length
51.0 mm (2.01 in)
Arm Length 1
6.00 IN
Harmonized System (HS) Code
870830
Country of Origin
China
Product Type
Manual - Type 26
Arm Offset
No Offset
Lube Fitting Type
Straight
Arm Bushing(s)
Ø .50 IN (Ø 12.7 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 28 Spline
Weight
5.23 lb
