$35.95
$43.14
Minimum Quantity 6
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

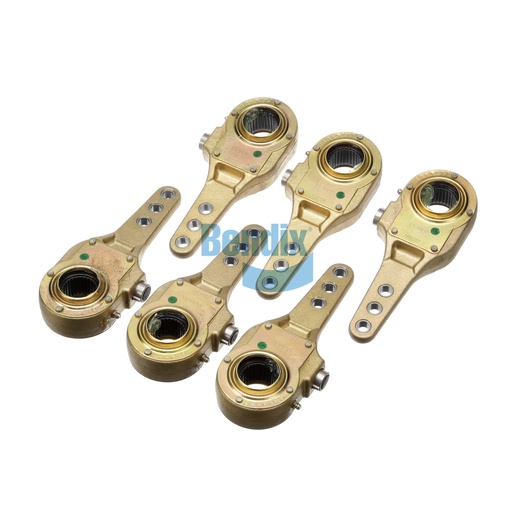

The Bendix slack adjuster (manual) is essential for maintaining proper brake adjustment and performance in heavy-duty applications. Designed for ease of use, this adjuster allows for manual adjustments to ensure that your brakes function optimally, providing consistent stopping power. With a torque rating of 26,000 IN LBS, this slack adjuster is built to withstand the rigors of the road, ensuring durability and longevity. Its robust construction and reliable design make it a valuable addition to any commercial vehicle's braking system. Investing in quality components is critical for maintaining safety on the road. Source One Parts Center is the premier destination for genuine Bendix OEM parts, ensuring you receive the best for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-005: Slack Adjuster - Manual, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Length
110.0 mm (4.33 in)
Maximum Operating Temperature
158 °F (70 °C)
Height
237.0 mm (9.33 in)
Torque Rating
26,000 IN LBS
Arm Length 3
5.00 IN
Width
51.0 mm (2.01 in)
Arm Length 2
6.00 IN
Arm Length 1
7.00 IN
Harmonized System (HS) Code
870839,870830
Country of Origin
China
Product Type
Manual - Type 26
Arm Offset
No Offset
Lube Fitting Type
Straight
Arm Bushing(s)
Ø .50 IN (Ø 12.7 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 28 Spline
Weight
5.25 lb
