279946N

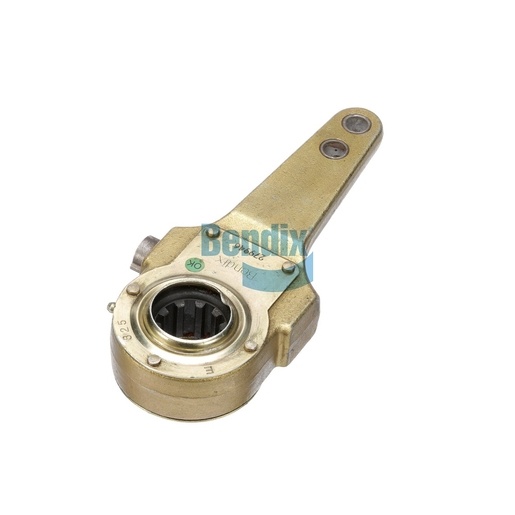

Slack Adjuster (Manual)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Slack Adjuster (Manual) is an essential component for ensuring proper brake function in commercial vehicles. This manual slack adjuster is designed to maintain optimal brake shoe clearance, thereby enhancing braking efficiency and safety. Built with high-strength materials, it offers impressive durability and resistance to wear, ensuring a long service life even under rigorous conditions. The adjuster's torque rating of 26,000 IN LBS signifies its capability to withstand significant forces, making it ideal for heavy-duty applications. Routine adjustments with the Bendix manual slack adjuster can prevent uneven brake wear and maintain consistent braking performance. For the best in genuine Bendix OEM parts, choose Source One Parts Center, your reliable source for commercial vehicle solutions.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Arm Offset
0.625 IN (Right Hand)
VMRS
013-017-005: Slack Adjuster - Manual, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
26,000 IN LBS
Arm Length 2
6.00 IN
Arm Length 1
7.00 IN
Harmonized System (HS) Code
870830
Country of Origin
China
Product Type
Manual - Type 26
Lube Fitting Type
Straight
Arm Bushing(s)
Ø .50 IN (Ø 12.7 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
4.52 lb
