102110N

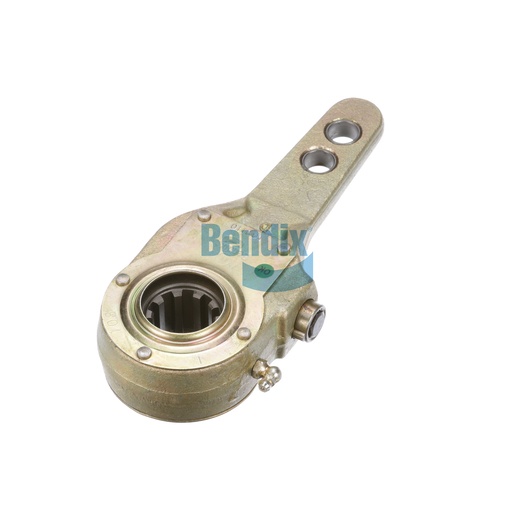

Slack Adjuster (Manual)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
This manual slack adjuster from Bendix is engineered for exceptional performance in commercial vehicle braking systems. Designed with a torque rating of 30,000 in-lbs, it ensures reliable brake adjustments that enhance safety and efficiency. With arm lengths of 6.50 inches and 5.50 inches, its compact design allows for easy installation in tight spaces. The slack adjuster's robust construction can handle extreme temperatures ranging from -40°F to 158°F, making it suitable for various environments. It plays a crucial role in maintaining even brake wear, thereby extending the lifespan of brake components and improving overall vehicle safety. For those in need of high-quality truck parts, Source One Parts Center is the best place to get genuine Bendix OEM parts that ensure peak performance and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-005: Slack Adjuster - Manual, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
30,000 IN LBS
Arm Length 2
5.50 IN
Arm Length 1
6.50 IN
Harmonized System (HS) Code
870830
Lube Fitting Type
90° Elbow
Country of Origin
China
Product Type
Manual - Type 30
Arm Offset
No Offset
Arm Bushing(s)
Ø .625 IN (Ø 15.9 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
6.68 lb
