FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

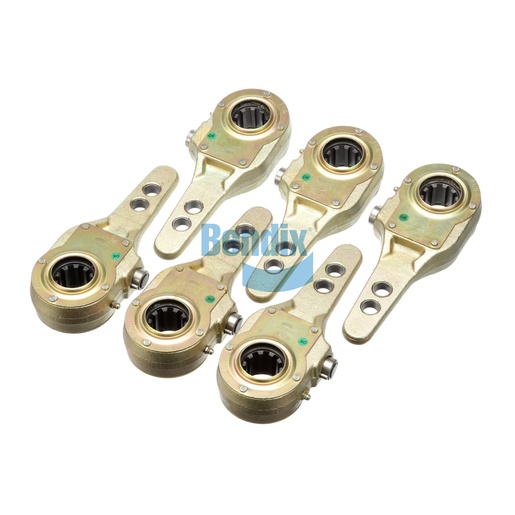

The Manual Slack Adjuster is designed for optimal performance in heavy-duty braking systems, providing precise adjustments to maintain proper brake function. This component is critical for ensuring that your brakes engage correctly and effectively, enhancing overall safety on the road. Built to withstand harsh conditions, it features a robust design that ensures durability and reliability. The adjuster's manual operation allows for easy adjustments as needed, making it an excellent choice for maintenance routines. With a torque rating of 30,000 IN LBS, it is capable of handling the demands of commercial applications, ensuring your braking system operates at peak performance. For all your genuine Bendix parts, Source One Parts Center is the best destination to find high-quality, OEM components tailored for your needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-005: Slack Adjuster - Manual, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
30,000 IN LBS
Arm Length 2
5.00 IN
Arm Length 1
6.00 IN
Harmonized System (HS) Code
870830
Country of Origin
China
Product Type
Manual - Type 30
Arm Offset
No Offset
Lube Fitting Type
Straight
Arm Bushing(s)
Ø .625 IN (Ø 15.9 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
6.57 lb
