FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

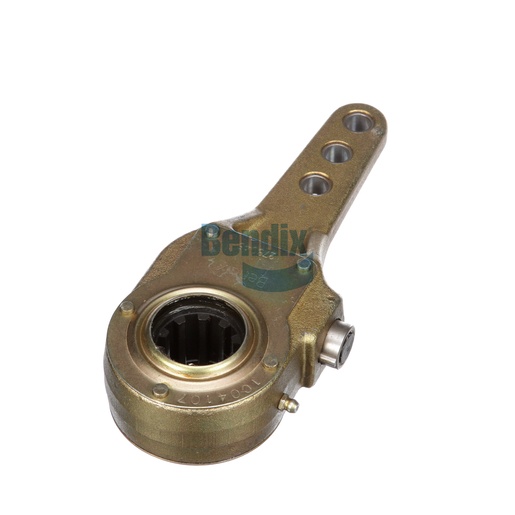

The Manual Slack Adjuster by Bendix is designed for heavy-duty applications, ensuring that your braking system operates effectively and safely. This adjuster plays a crucial role in maintaining optimal brake performance by automatically adjusting the brake shoes as they wear, which helps to reduce the risk of brake fade and enhances overall safety. With a high torque rating of 30,000 IN LBS, this slack adjuster is built to withstand the rigors of commercial trucking, providing reliable performance under demanding conditions. Its robust construction and high-quality materials ensure durability and longevity, making it an essential component for fleet maintenance. For operators committed to safety and efficiency, investing in top-quality components is paramount. Source One Parts Center is your go-to source for genuine Bendix OEM parts, ensuring your vehicles are equipped with the best parts for optimal performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-005: Slack Adjuster - Manual, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
30,000 IN LBS
Arm Length 3
5.00 IN
Arm Length 2
6.00 IN
Arm Length 1
7.00 IN
Harmonized System (HS) Code
870839,870830
Country of Origin
China
Product Type
Manual - Type 30
Arm Offset
No Offset
Lube Fitting Type
Straight
Arm Bushing(s)
Ø .50 IN (Ø 12.7 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
7.14 lb
