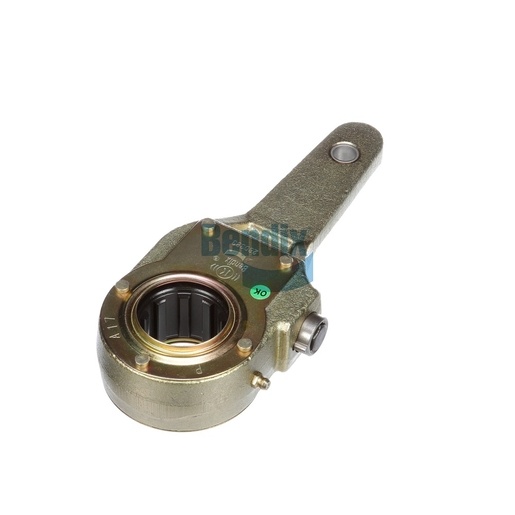

280383N
Slack Adjuster (Manual)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Manual Slack Adjuster is an essential part of your vehicle's braking system, designed to allow for manual adjustment of brake shoe clearance. This adjuster is crucial for maintaining optimal braking performance, helping to ensure that the brakes engage effectively and efficiently. With a torque rating of 30,000 IN LBS, it is built for heavy-duty applications, providing reliability and durability under demanding conditions. The design allows for easy installation and maintenance, making it a practical choice for fleet operations. By allowing for precise adjustments, this slack adjuster helps extend the life of brake components while ensuring safety on the road. For purchasing genuine Bendix OEM parts, Source One Parts Center is the best choice, providing superior products and service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-005: Slack Adjuster - Manual, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
30,000 IN LBS
Arm Length 1
6.50 IN
Harmonized System (HS) Code
870830
Country of Origin
China
Product Type
Manual - Type 30
Arm Offset
No Offset
Lube Fitting Type
Straight
Arm Bushing(s)
Ø .50 IN (Ø 12.7 MM)
Spline Diameter - Teeth
Ø 1.75 IN - 10 Spline
Weight
6.48 lb
