278898N

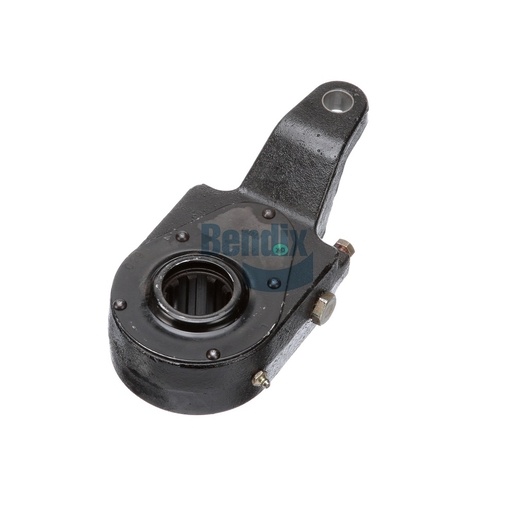

Slack Adjuster (Manual)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Manual Slack Adjuster is engineered for durability and precision in maintaining proper brake adjustments in heavy-duty applications. With a torque rating of 35,000 IN LBS and a robust build, this slack adjuster ensures that your braking system operates efficiently, enhancing safety and reducing wear on brake components. The manual design allows for easy adjustments, providing a straightforward solution for maintaining optimal brake performance. Its compatibility with various brake configurations makes it a versatile choice for fleet maintenance. When you choose to buy from Source One Parts Center, you're guaranteed access to genuine Bendix OEM parts that uphold the highest standards of quality and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-005: Slack Adjuster - Manual, Position Not Specified
Inclination Angle (Body Angle)
0°
Maximum Operating Temperature
158 °F (70 °C)
Arm Offset
2.00 IN (Left Hand)
Torque Rating
35,000 IN LBS
Arm Length 1
6.75 IN
Harmonized System (HS) Code
870830
Country of Origin
China
Product Type
Manual - Type 35
Arm Bushing(s)
Ø .75 IN (Ø 19 MM)
Spline Diameter - Teeth
Ø 1.75 IN - 10 Spline
Weight
14.02 lb
