279388N
Slack Adjuster (Manual)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

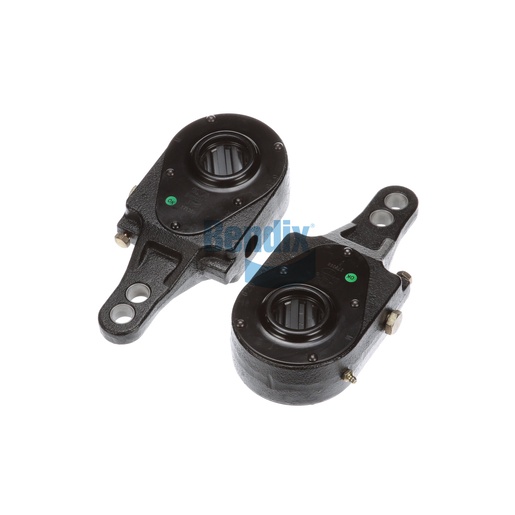

The Bendix manual slack adjuster is specifically designed for reliable performance in your truck's braking system. With a torque rating of 35,000 inch-pounds, this adjuster provides exceptional strength and durability, making it ideal for heavy-duty applications. Its manual design allows for precise adjustments, ensuring that your brake shoes maintain optimal contact with the drum. Constructed to withstand temperatures ranging from -40°F to 158°F, this slack adjuster is built for reliability under various conditions. The easy installation process and robust design make this adjuster a perfect choice for fleet maintenance. For high-quality Bendix OEM parts, Source One Parts Center is your go-to supplier, delivering exceptional service and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-005: Slack Adjuster - Manual, Position Not Specified
Inclination Angle (Body Angle)
0°
Maximum Operating Temperature
158 °F (70 °C)
Lube Fitting Position
15°
Torque Rating
35,000 IN LBS
Arm Length 2
6.00 IN
Arm Length 1
7.00 IN
Harmonized System (HS) Code
870830
Country of Origin
China
Product Type
Manual - Type 35
Arm Offset
No Offset
Lube Fitting Type
Straight
Arm Bushing(s)
Ø .75 IN (Ø 19 MM)
Spline Diameter - Teeth
Ø 1.75 IN - 10 Spline
Weight
13.29 lb
