DESCRIPTION

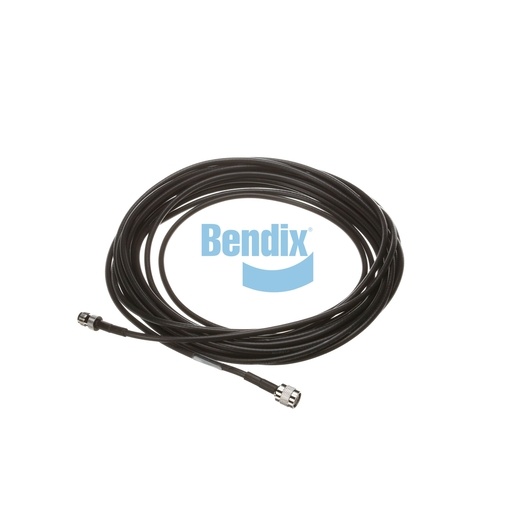

The Bendix Cable Assembly is an integral part of the Tire Pressure Monitoring System (TPMS), specifically designed for SmarTire applications in tractors, trucks, and buses. This 30-foot cable assembly facilitates effective communication between the TPMS antenna and the ECU, ensuring accurate monitoring of tire pressure. Constructed with high-quality materials, it is built to withstand the rigors of commercial use, providing durability and reliability. The assembly features connectors designed for secure fitting, allowing for straightforward installation in various vehicle configurations. Proper tire pressure is critical for vehicle safety, fuel efficiency, and overall performance, making this cable assembly a vital component for fleet management. Ensuring your TPMS is fully operational can help prevent costly tire-related issues. For the best selection of Bendix OEM parts, Source One Parts Center is your trusted source, providing quality and reliability for all your commercial vehicle needs.
SPECIFICATIONS
Cable Length
30 FT (9.1 M)
Height
300.0 mm (11.81 in)
Length
300.0 mm (11.81 in)
Width
80.0 mm (3.15 in)
Harmonized System (HS) Code
854420
Country of Origin
China
Connector (Antenna)
Jack TNC FSH58A
Connector (ECU)
Plug TNC M58A
Weight
0.85 lb
