$599.95
$719.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

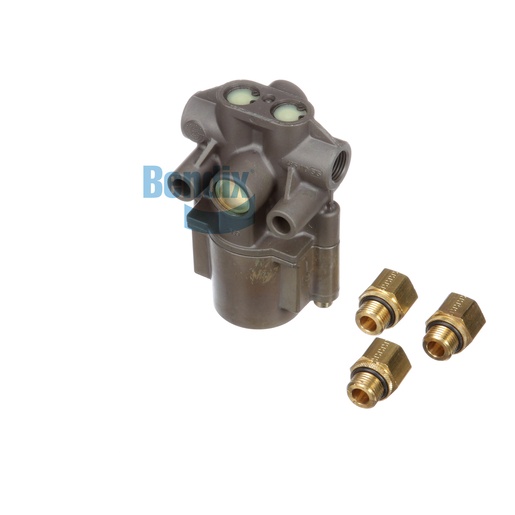

The Solenoid Valve is an advanced component designed to enhance the functionality of your truck's braking system. This valve operates effectively under various pressures, making it essential for maintaining optimal brake performance. With a compact design and a weight of just 0.9 kg, this solenoid valve is engineered to fit seamlessly into tight spaces while delivering reliable functionality. It is built to withstand harsh environmental conditions, ensuring longevity and consistent performance. The valve's precise control over air flow contributes to the overall effectiveness of the braking system, ensuring your vehicle operates safely. By choosing Bendix's OEM Solenoid Valve, you are investing in quality and performance. For the best selection of genuine Bendix parts, Source One Parts Center is the premier destination for commercial vehicle components.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-077: Traction Control Valve (TCV) - Antilock Brakes
Maximum Operating Temperature
176 °F (80 °C)
Voltage (Nominal)
24 VDC
Operating Pressure Range
3 - 12 Bar (43.5 PSI - 174 PSI)
Harmonized System (HS) Code
848120
Country of Origin
Germany
Ingress Protection Rating
IP54
Delivery Port
M16 x 1.5-6H
Service Port
M16 x 1.5-6H
Supply Port
M16 x 1.5-6H
Cautionary Note(s)
Max. Tightening Torque = 50 ± 5 Nm.
Connector Type
Metric Thread (M24 x 1.0-6g)
Product Type
Stand-Alone
Mounting
Ø 9.0 mm (2x)
Weight
1.92 lb
