K035443

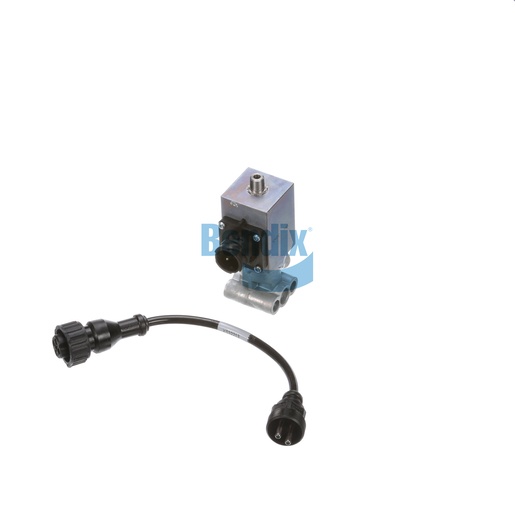

Solenoid Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Solenoid Valve is a standout component in the Bendix lineup, serving as a vital element for controlling air flow in various applications including antilock braking systems. Designed with an operating pressure range of 0 to 12.5 Bar (181 PSI), this valve features a durable construction that withstands the rigors of commercial vehicle operations. The solenoid is equipped with a 2-way circular DIN connector and operates at a nominal voltage of 12 VDC, ensuring compatibility with most systems. Its ingress protection rating of IP69K guarantees reliable performance even in harsh environments. Additionally, the valve's compact design and lightweight nature make it easy to integrate into existing setups. For those seeking the best in commercial vehicle parts, Source One Parts Center is the ideal destination for genuine Bendix OEM components, promising top-notch quality and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Operating Pressure Range
0 - 12.5 Bar (181 PSI)
VMRS
013-011-077: Traction Control Valve (TCV) - Antilock Brakes
Current (Nominal)
1.4 A
Delivery Port
1/4-18 NPT (Female)
Supply Port
1/4-18 NPT (Female)
Service Port
1/8-27 NPT (Male)
Voltage (Nominal)
12 VDC
Maximum Operating Pressure
12.5 Bar (181 PSI)
Maximum Operating Temperature
158 °F (70 °C)
Connector Type
2-Way Circular DIN (ISO 15170-1 Twist-Lock)
Coil Resistor
8.5 Ohms
Harmonized System (HS) Code
848120
Ingress Protection Rating
IP69K
Cautionary Note(s)
Max. Torque < 18 lb-ft. Install fittings no more than 1 turn.
Country of Origin
Poland
Operation
Solenoid State (NO / NC) is determined by application plumbing
Product Type
Stand-Alone
Mounting
Ø 8.5 mm (2x)
Weight
9.99 lb
