K073076

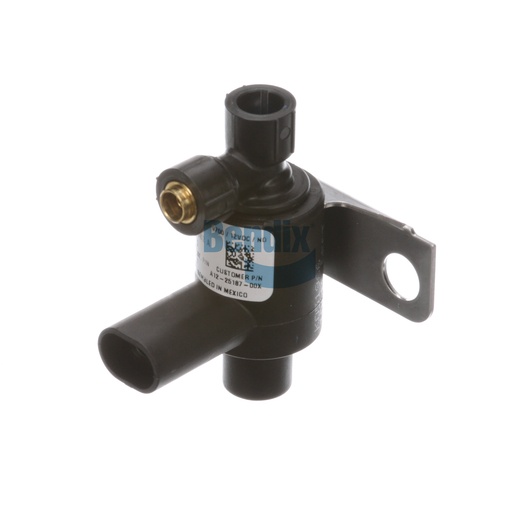

Fan Clutch Solenoid
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Fan Clutch Solenoid by Bendix is an essential component for optimizing the efficiency of your vehicle's cooling system. Designed for reliable operation, this solenoid controls the engagement and disengagement of the fan clutch, thereby ensuring that the engine maintains an optimal temperature under varying load conditions. Its robust construction is capable of withstanding harsh environments, making it ideal for commercial applications. With a net weight of just 0.4 lbs, this solenoid is compact yet powerful, delivering precise control where it is needed most. It operates effectively across a wide voltage range and temperature spectrum, ensuring adaptability to different vehicle specifications. For those seeking reliable Bendix OEM parts, Source One Parts Center is the best destination, offering genuine components that ensure your truck runs smoothly and efficiently.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
042-003-024: Solenoid Valve - Fan Clutch
Delivery Port
1/4 PTC
Supply Port 1
1/4 PTC
Flyback Diode
1N4004
Maximum Operating Temperature
221 °F (105 °C)
Resistance
38 ± 2 Ohms (at 70°F)
Width
53.6 mm (2.11 in)
Length
59.2 mm (2.33 in)
Operating Pressure Range
60 - 150 PSI
Height
78.0 mm (3.07 in)
Harmonized System (HS) Code
848120
Operating Voltage Range
9 VDC - 16 VDC
Cautionary Note(s)
EXH must face downward/horizontal. Do not cover/paint exhaust.
Bracket Orientation
Left
Connector Type
Metri-Pack 150 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Operation
NO - Normally Open (White)
Product Type
Stand-Alone
Inlet Orifice
Ø .045 IN
Exhaust Orifice
Ø .047 IN
Mounting
Ø .440 IN
Weight
0.4 lb
