$92.95
$111.54
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

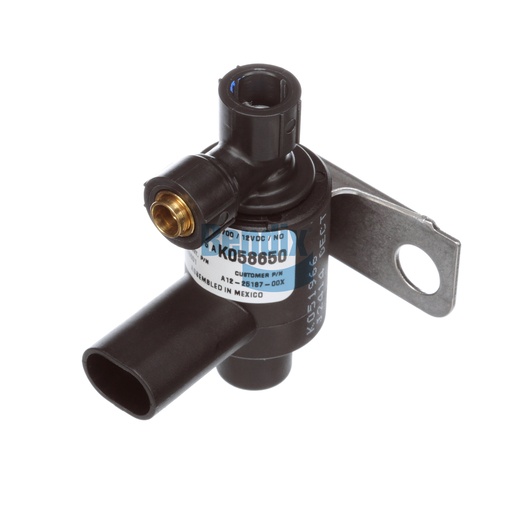

The Bendix Solenoid Valve is an essential component for ensuring efficient operation of various pneumatic systems in commercial vehicles. This stand-alone unit features a normally open operation, with a precise resistance of 38 ± 2 Ohms at 70°F, ensuring reliable performance under varying conditions. Designed for easy integration, it comes with a 1/4 PTC inlet and exhaust orifices measuring Ø .045 IN and Ø .047 IN respectively, facilitating seamless airflow management. The solenoid valve can operate within a voltage range of 9 VDC to 16 VDC and withstands operating pressures from 60 to 150 PSI, making it versatile for diverse applications. With a compact size and a net weight of just 0.2 kilograms (0.34 pounds), it’s perfect for installations where space is limited. For those in search of high-quality, genuine parts, Source One Parts Center is the trusted source for Bendix OEM components, ensuring you receive the reliability and performance your vehicle demands.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
042-003-024: Solenoid Valve - Fan Clutch
Delivery Port
1/4 PTC
Supply Port 1
1/4 PTC
Flyback Diode
1N4004
Maximum Operating Temperature
212 °F (100 °C)
Resistance
38 ± 2 Ohms (at 70°F)
Width
53.6 mm (2.11 in)
Length
59.2 mm (2.33 in)
Operating Pressure Range
60 - 150 PSI
Height
78.0 mm (3.07 in)
Harmonized System (HS) Code
848120
Operating Voltage Range
9 VDC - 16 VDC
Cautionary Note(s)
EXH must face downward/horizontal. Do not cover/paint exhaust.
Bracket Orientation
Left
Connector Type
Metri-Pack 150 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Operation
NO - Normally Open (White)
Product Type
Stand-Alone
Inlet Orifice
Ø .045 IN
Exhaust Orifice
Ø .047 IN
Mounting
Ø .440 IN
Weight
0.34 lb
