K073057

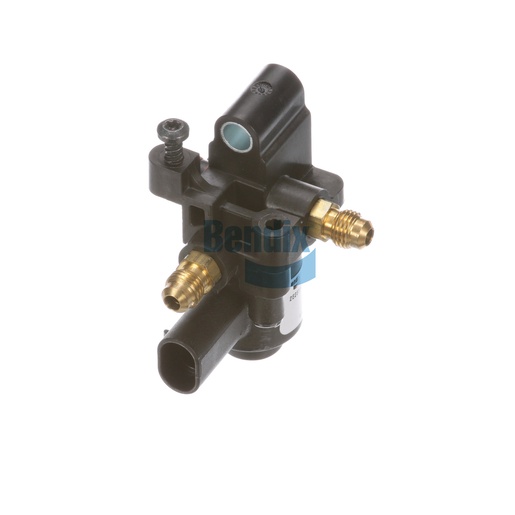

Solenoid Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Solenoid Assembly is a crucial component in the air braking system, specifically designed to enhance the control and efficiency of your vehicle's braking performance. With a compact design and advanced functionality, this solenoid operates under a wide range of voltage and pressure conditions, ensuring reliable performance in various environments. The assembly features a normally closed operation and includes multiple supply ports for versatile applications, making it an excellent choice for both new installations and replacements. Its durability and efficiency make it essential for maintaining optimal braking performance in commercial vehicles. Source One Parts Center is the best place to find genuine Bendix OEM parts, offering products that meet the exact specifications required for your vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-093: Solenoid Valve - Air
Delivery Port
1/4 Tube (45° Flare / Straight)
Supply Port 1
1/4 Tube (45° Flare / Straight)
Maximum Operating Temperature
185 °F (85 °C)
Resistance
19 ± 1 Ohms (at 70°F)
Flyback Diode
1N4004
Width
46.2 mm (1.82 in)
Length
47.2 mm (1.86 in)
Operating Pressure Range
60 - 150 PSI
Height
65.3 mm (2.57 in)
Harmonized System (HS) Code
848120
Operating Voltage Range
9 VDC - 16 VDC
Cautionary Note(s)
EXH must face downward/horizontal. Do not cover/paint exhaust.
Connector Type
Metri-Pack 150 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Operation
NC - Normally Closed (Black)
Supply Port 2
Open interlock stem
Product Type
Stacking Manifold
Exhaust Orifice
Ø .070 IN
Inlet Orifice
Ø .070 IN
Mounting
Ø .440 IN
Weight
0.45 lb
