K073063

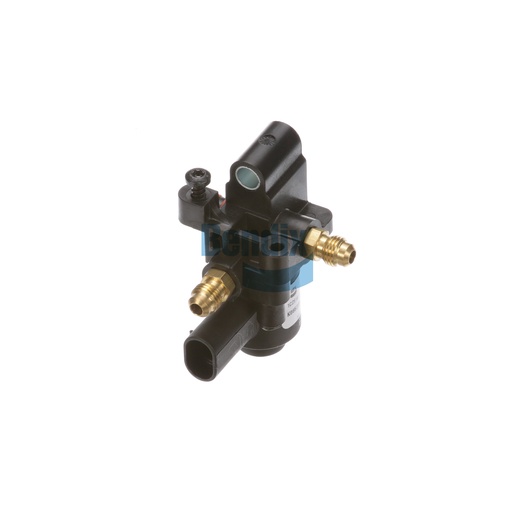

Solenoid Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Solenoid Assembly is a critical component in the braking system of commercial vehicles, responsible for controlling the flow of air and enhancing braking efficiency. Engineered in Mexico, this solenoid valve is designed for reliable operation under varying conditions, making it essential for maintaining optimal braking performance. The assembly features advanced technical attributes that ensure precise control over air pressure, contributing to improved response times during braking. Its durable construction allows it to withstand the rigors of heavy-duty applications, ensuring long-lasting performance. By incorporating this solenoid into your vehicle's braking system, you enhance safety and efficiency on the road. For the highest quality Bendix OEM parts, Source One Parts Center is your best choice for reliable solutions.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-093: Solenoid Valve - Air
Delivery Port
1/4 Tube (45° Flare / Straight)
Supply Port 1
1/4 Tube (45° Flare / Straight)
Length
105.4 mm (4.15 in)
Width
121.4 mm (4.78 in)
Maximum Operating Temperature
185 °F (85 °C)
Flyback Diode
1N4004
Operating Pressure Range
60 - 150 PSI
Resistance
60 ± 2 Ohms (at 70°F)
Height
66.3 mm (2.61 in)
Harmonized System (HS) Code
848120
Operating Voltage Range
9 VDC - 16 VDC
Cautionary Note(s)
EXH must face downward/horizontal. Do not cover/paint exhaust.
Operation
Latching NC-NC (Gray)
Connector Type
Metri-Pack 150 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Supply Port 2
Open interlock stem
Product Type
Stacking Manifold
Exhaust Orifice
Ø .050 IN
Inlet Orifice
Ø .050 IN
Mounting
Ø .440 IN
Weight
0.82 lb
