104266N

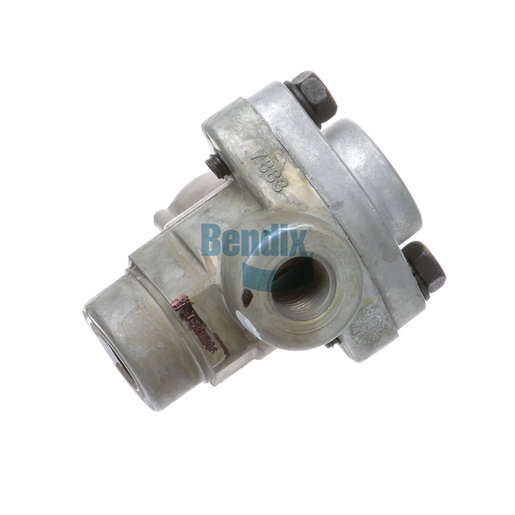

Double Check Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Double Check Valve from Bendix is designed to improve the efficiency and safety of your vehicle's air brake system. This essential component features a compact design with two supply and two delivery ports, ensuring effective air management during braking operations. With a maximum operating temperature of 200°F and a minimum of -40°F, it is built to withstand the harshest conditions. Its lightweight construction, weighing only 0.3 kg, makes installation simple while ensuring durability in demanding environments. This valve plays a crucial role in maintaining consistent air pressure, contributing to the overall performance of your braking system. For genuine Bendix OEM parts, Source One Parts Center is your best destination, providing quality you can trust.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-006: Transfer Or Double Check Valve - Air Brake
Delivery Port 1
1/4-18 NPT (Female)
Delivery Port 2
1/4-18 NPT (Female)
Supply Port 2
1/4-18 NPT (Female)
Supply Port 1
1/4-18 NPT (Male)
Maximum Operating Temperature
200 °F (93 °C)
Height
50.8 mm (2.0 in)
Width
55.6 mm (2.19 in)
Length
63.5 mm (2.5 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Thread Sealant
No Sealant
Weight
0.64 lb
