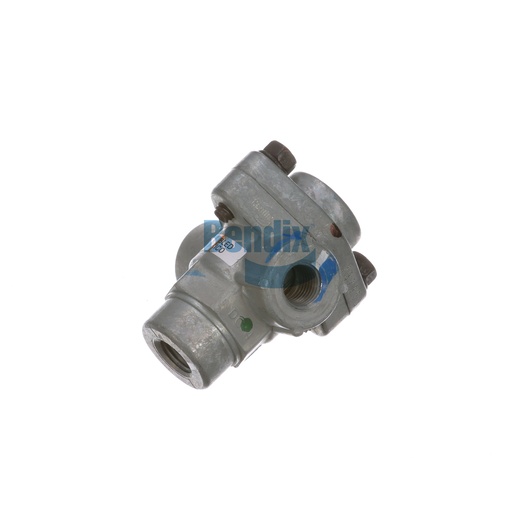

104289N
Double Check Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Double Check Valve is a vital component in the air brake system, designed to ensure reliable performance by managing air flow effectively. This valve facilitates the transfer of air between different systems, contributing to the overall efficiency and safety of braking operations. Its durable construction allows it to withstand harsh conditions, reducing the risk of failure and ensuring longevity. The compact design simplifies installation and maintenance, making it a practical choice for fleet operators. For sourcing genuine Bendix OEM parts, Source One Parts Center is the top destination, providing high-quality components that ensure your commercial vehicles operate safely and efficiently.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-006: Transfer Or Double Check Valve - Air Brake
Delivery Port 2
1/4-18 NPT (Female)
Supply Port 2
1/4-18 NPT (Female)
Supply Port 1
1/4-18 NPT (Male)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT (Female)
Height
50.8 mm (2.0 in)
Width
55.6 mm (2.19 in)
Length
63.5 mm (2.5 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Thread Sealant
No Sealant
Weight
0.64 lb
