DESCRIPTION

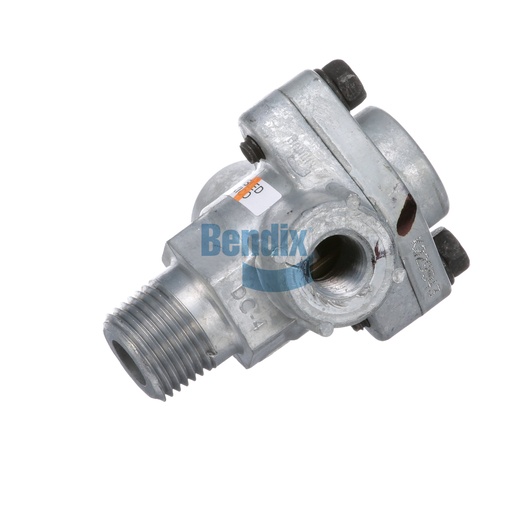

The Bendix Double Check Valve provides exceptional reliability and performance in your air brake system. This valve is designed to maintain proper air pressure in the system, preventing any unwanted leaks and ensuring that your brakes function optimally. Weighing only 0.3 kg, it is compact and easy to install, making it an ideal choice for any technician or fleet manager. The valve’s robust construction is built to withstand the demanding conditions of commercial vehicle operations, ensuring long-lasting performance. When looking for genuine Bendix OEM parts, Source One Parts Center is your best option, offering high-quality components backed by excellent customer service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-006: Transfer Or Double Check Valve - Air Brake
Supply Port 1
1/2-14 NPT (Male)
Delivery Port 1
1/4-18 NPT (Female)
Delivery Port 2
1/4-18 NPT (Female)
Supply Port 2
1/4-18 NPT (Female)
Maximum Operating Temperature
200 °F (93 °C)
Height
50.8 mm (2.0 in)
Width
55.6 mm (2.19 in)
Length
69.9 mm (2.75 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Thread Sealant
No Sealant
Weight
0.64 lb
