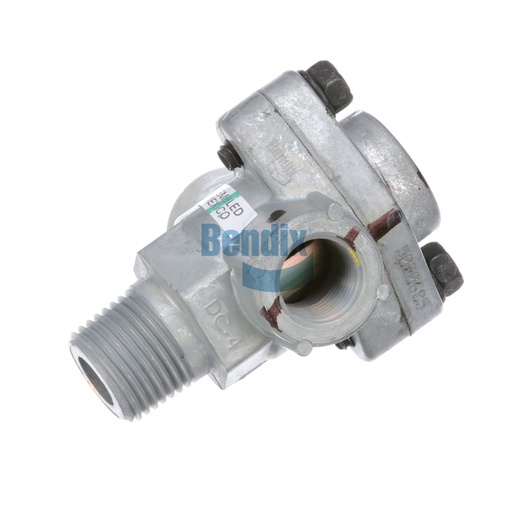

278596N
Double Check Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Double Check Valve from Bendix is designed to enhance the safety and efficiency of your vehicle's air brake system. This valve allows for precise control over air flow, ensuring that both supply and delivery ports function optimally. Weighing just 0.3 kg (0.6 lb), it is compact yet robust, making it easy to install and maintain. The valve's reliable operation contributes to the overall effectiveness of the braking system, helping to prevent air leaks and ensuring that brakes engage smoothly. By choosing this component, you are investing in the safety and performance of your vehicle. For genuine Bendix OEM parts, Source One Parts Center is your best choice.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-006: Transfer Or Double Check Valve - Air Brake
Supply Port 1
1/2-14 NPT (Male)
Supply Port 2
1/4-18 NPT (Female)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT (Female)
Delivery Port 2
3/8-18 NPT (Female)
Height
50.8 mm (2.0 in)
Width
55.6 mm (2.19 in)
Length
69.9 mm (2.75 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Thread Sealant
No Sealant
Weight
0.6 lb
