278597N

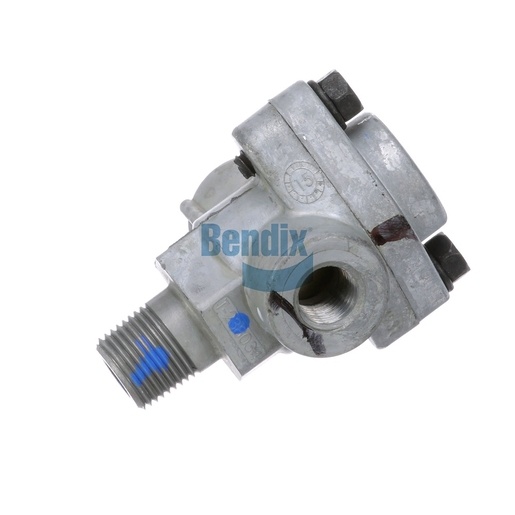

Double Check Valve
Bendix
IN STOCK
More than 10 are currently available
Ships within 1 business day
$48.95
$58.74
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Double Check Valve is an essential component designed to enhance the safety and performance of air brake systems in commercial vehicles. This valve allows for independent control of two air circuits, ensuring that air pressure is effectively managed and distributed across the braking system. Built for durability, it operates efficiently under a wide range of temperatures, making it ideal for rigorous trucking environments. The compact design allows for easy integration into existing systems, facilitating straightforward installation and maintenance. By ensuring that the braking system operates smoothly, this valve plays a critical role in preventing brake failure and enhancing overall vehicle safety. For reliable truck components, Source One Parts Center offers the best selection of genuine Bendix OEM parts, ensuring you receive the highest quality for your fleet.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-006: Transfer Or Double Check Valve - Air Brake
Delivery Port 1
1/4-18 NPT (Female)
Delivery Port 2
1/4-18 NPT (Female)
Supply Port 2
1/4-18 NPT (Female)
Maximum Operating Temperature
200 °F (93 °C)
Supply Port 1
3/8-18 NPT (Male)
Height
50.8 mm (2.0 in)
Width
55.6 mm (2.19 in)
Length
69.9 mm (2.75 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Thread Sealant
No Sealant
Weight
0.6 lb
