278599N

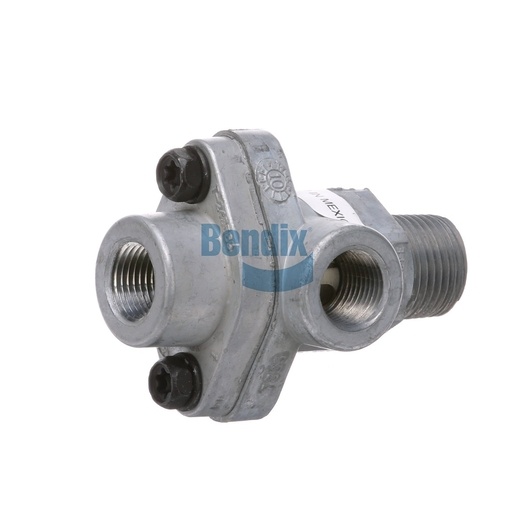

Double Check Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Double Check Valve is designed to enhance the efficiency of air brake systems by preventing backflow and ensuring consistent air pressure. This valve features a compact design that allows for easy installation in tight spaces, making it ideal for various commercial vehicles. With a maximum operating temperature of 200°F and a minimum of -40°F, it is built to withstand harsh conditions. The double check valve ensures that air pressure is maintained effectively, contributing to the overall reliability and safety of the braking system. When you need genuine Bendix OEM parts, look no further than Source One Parts Center, where quality and customer service take precedence.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-006: Transfer Or Double Check Valve - Air Brake
Supply Port 1
1/2-14 NPT (Male)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT (Female)
Delivery Port 2
3/8-18 NPT (Female)
Supply Port 2
3/8-18 NPT (Female)
Height
50.8 mm (2.0 in)
Width
55.6 mm (2.19 in)
Length
76.2 mm (3.0 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Thread Sealant
No Sealant
Weight
0.64 lb
