287612N

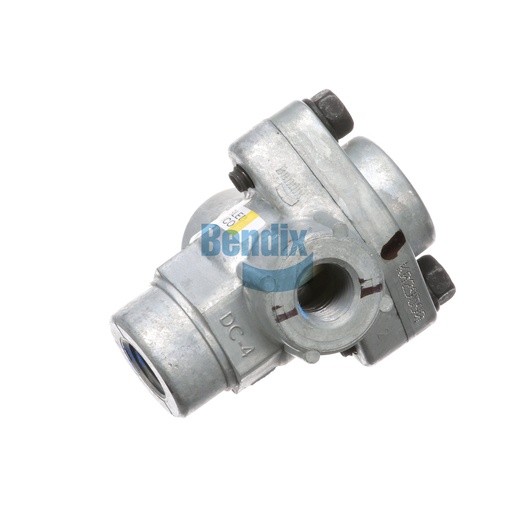

Double Check Valve
Bendix
IN STOCK
More than 10 are currently available
Ships within 1 business day
$42.95
$51.54
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix double check valve ensures optimal functionality in your vehicle's braking system by preventing backflow and maintaining consistent pressure. Designed for reliability, this valve is ideal for use in air brake systems, enhancing overall safety during operation. Its compact design allows for easy installation in tight spaces, making it a perfect fit for various commercial vehicles. The double check valve is built to withstand harsh conditions, ensuring long-lasting performance and reducing the risk of failure during critical moments. By choosing this high-quality part, you can maintain the integrity of your braking system and ensure peace of mind on the road. Source One Parts Center is dedicated to providing authentic Bendix OEM parts, ensuring you have the best components for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-006: Transfer Or Double Check Valve - Air Brake
Delivery Port 1
1/4-18 NPT (Female)
Delivery Port 2
1/4-18 NPT (Female)
Supply Port 2
1/4-18 NPT (Female)
Supply Port 1
1/4-18 NPT (Male)
Maximum Operating Temperature
200 °F (93 °C)
Height
50.8 mm (2.0 in)
Width
55.6 mm (2.19 in)
Length
63.5 mm (2.5 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Thread Sealant
No Sealant
Weight
0.64 lb
