$41.95
$50.34
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

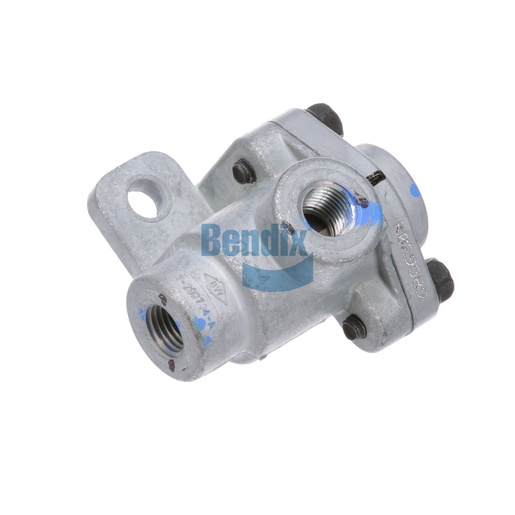

The Bendix Double Check Valve is an essential component designed to enhance the reliability of air brake systems. Weighing only 0.3 kg, this compact valve ensures that air pressure is properly managed and maintained, preventing leaks and ensuring consistent brake performance. Its robust construction allows it to withstand the rigors of commercial vehicle operations, making it suitable for various applications. The double check valve features multiple ports for effective air flow management, contributing to the overall efficiency of the braking system. This part is crucial for maintaining optimal performance and safety in heavy-duty vehicles. For genuine Bendix OEM parts that ensure the longevity and reliability of your vehicle's braking system, Source One Parts Center is the ideal choice.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-006: Transfer Or Double Check Valve - Air Brake
Delivery Port 1
1/4-18 NPT (Female)
Supply Port 1
1/4-18 NPT (Female)
Supply Port 2
1/4-18 NPT (Female)
Maximum Operating Temperature
200 °F (93 °C)
Width
53.8 mm (2.12 in)
Length
65.8 mm (2.59 in)
Height
67.6 mm (2.66 in)
Harmonized System (HS) Code
848130,848120
Country of Origin
Mexico
Mounting
Ø .34 IN
Weight
0.66 lb
