295036N

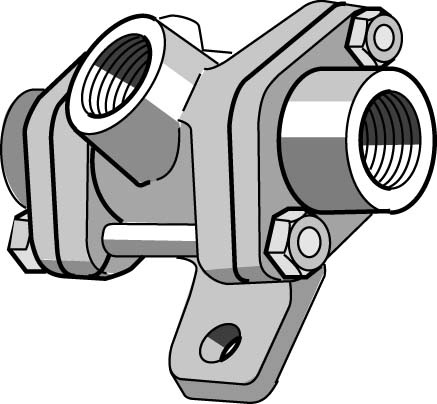

Double Check Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Double Check Valve is a vital component in your air brake system, designed to ensure a reliable and efficient supply of air pressure. This valve features durable construction that withstands the rigors of commercial use while effectively managing air flow to maintain braking performance. It operates smoothly in temperatures ranging from -40°F to 200°F, making it suitable for various environmental conditions. The double check valve is crucial for preventing air loss, ensuring that your braking system functions correctly under all circumstances. For the best selection of genuine Bendix OEM parts, Source One Parts Center stands out as your trusted source for quality and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-006: Transfer Or Double Check Valve - Air Brake
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT (Female)
Supply Port 1
3/8-18 NPT (Female)
Supply Port 2
3/8-18 NPT (Female)
Harmonized System (HS) Code
848130,848120
Country of Origin
Germany
Mounting
Ø 9 MM
Weight
0.71 lb
