5004864N

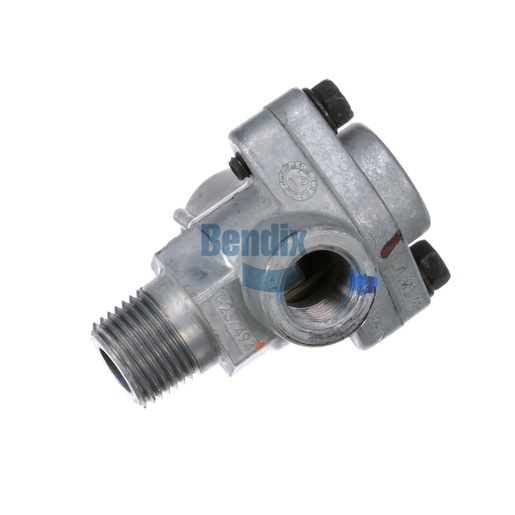

Double Check Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Enhance the efficiency and reliability of your braking system with the Bendix Double Check Valve. This essential component is designed to ensure consistent air flow and pressure in your vehicle's brake system, allowing for optimal performance under various conditions. Featuring a compact design with dimensions that fit seamlessly into existing systems, this valve is built for durability and longevity. It operates effectively in extreme temperatures, ensuring reliable performance in all environments. With its straightforward installation process, the Bendix Double Check Valve is an ideal choice for maintaining the integrity of your braking system. For genuine Bendix OEM parts that you can trust, Source One Parts Center is your top source, providing quality products for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-006: Transfer Or Double Check Valve - Air Brake
Supply Port 1
1/2-14 NPT (Male)
Supply Port 2
1/4-18 NPT (Female)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT (Female)
Delivery Port 2
3/8-18 NPT (Female)
Height
50.8 mm (2.0 in)
Width
55.6 mm (2.19 in)
Length
76.2 mm (3.0 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Thread Sealant
No Sealant
Weight
0.51 lb
