800196

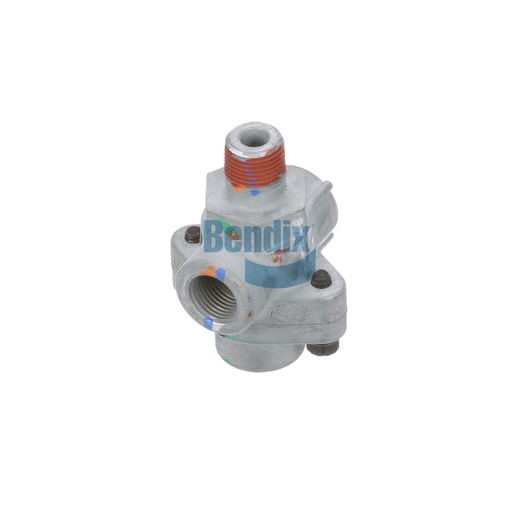

Double Check Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Double Check Valve is crucial for ensuring efficient operation of your vehicle's air brake system. It allows for the proper flow of air while preventing backflow, which is essential for maintaining optimal brake performance. Weighing just 0.3 kg, this valve is designed to be lightweight yet durable, making it suitable for heavy-duty applications. Its robust construction means it can withstand the rigors of commercial use, ensuring long-term reliability. For quick and effective brake system maintenance, trust Bendix components. Source One Parts Center offers genuine OEM parts, including this double check valve, ensuring your vehicles are always road-ready.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-006: Transfer Or Double Check Valve - Air Brake
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT (Female)
Delivery Port 2
3/8-18 NPT (Female)
Supply Port 2
3/8-18 NPT (Female)
Supply Port 1
3/8-18 NPT (Male)
Height
50.8 mm (2.0 in)
Width
55.6 mm (2.19 in)
Length
76.2 mm (3.0 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Thread Sealant
Pre-Applied
Weight
0.68 lb
