$48.95
$58.74
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

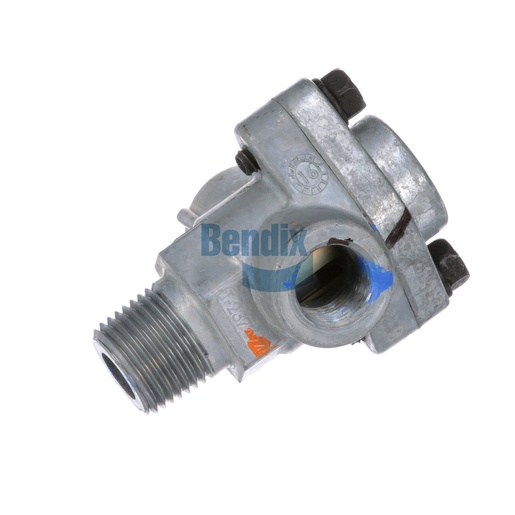

The Double Check Valve is an essential component of your air brake system, designed to ensure that your brake system operates reliably and efficiently. This high-quality valve allows for precise control over air distribution, enhancing the performance of your braking system. Its durable construction ensures longevity and resilience in demanding environments, making it a must-have for fleet maintenance. By using this Double Check Valve, you can prevent air leaks and ensure optimal air pressure is maintained, which is crucial for the reliability of your braking system. The installation process is straightforward, allowing for quick replacements and minimizing downtime. For those seeking genuine Bendix OEM parts, Source One Parts Center is the best option, providing authentic components that ensure your vehicle's performance and safety.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-006: Transfer Or Double Check Valve - Air Brake
Supply Port 1
1/2-14 NPT (Male)
Supply Port 2
1/4-18 NPT (Female)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT (Female)
Delivery Port 2
3/8-18 NPT (Female)
Height
50.8 mm (2.0 in)
Width
55.6 mm (2.19 in)
Length
69.9 mm (2.75 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Thread Sealant
No Sealant
Weight
0.65 lb
