DESCRIPTION

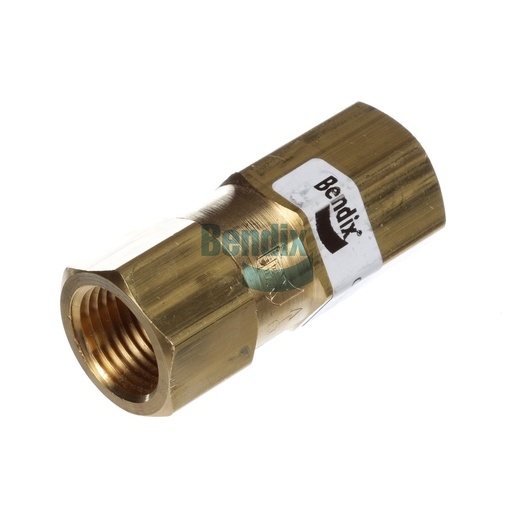

The Bendix Single Check Valve is designed to provide reliable performance in your vehicle's braking system, ensuring optimal air flow and preventing backflow. Weighing only 0.36 lbs, this compact valve is easy to install and is a critical component for maintaining efficient brake operation. With a maximum operating temperature of 250°F and a durable construction, this check valve is engineered for long-lasting reliability in demanding conditions. Its robust design allows for seamless integration into existing brake systems, making it an ideal choice for fleet maintenance. Source One Parts Center is your best destination for genuine Bendix OEM parts, ensuring quality and reliability for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-013: Check Valve - Air, Power Brakes
Inlet Port
1/2-14 NPT (Female)
Outlet Port
1/2-14 NPT (Female)
Height
25.4 mm (1.0 in)
Width
25.4 mm (1.0 in)
Maximum Operating Temperature
250 °F (121 °C)
Length
61.0 mm (2.4 in)
Harmonized System (HS) Code
848130,848120
Body Type
Straight (Brass)
Country of Origin
United States
Weight
0.36 lb
