DESCRIPTION

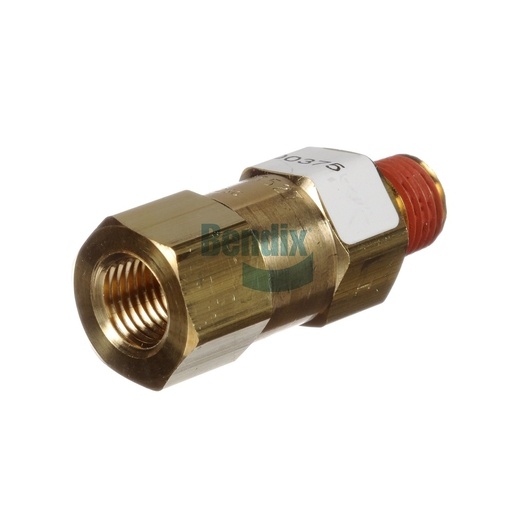

The Single Check Valve from Bendix is designed to enhance the efficiency and reliability of your commercial vehicle's braking system. With a compact and robust design, this valve weighs just 0.1 kg (0.23 lb) and is engineered to prevent backflow, ensuring that air pressure remains consistent throughout the braking system. Its high-quality brass construction ensures durability and longevity, providing peace of mind while on the road. This valve is essential for maintaining optimal braking performance, especially under demanding conditions. For sourcing genuine Bendix OEM parts, Source One Parts Center is your best option, offering reliable products and exceptional customer service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-013: Check Valve - Air, Power Brakes
Inlet Port
1/4-18 NPT (Female)
Outlet Port
1/4-18 NPT (Male)
Height
20.6 mm (0.81 in)
Width
20.6 mm (0.81 in)
Maximum Operating Temperature
250 °F (121 °C)
Length
54.1 mm (2.13 in)
Harmonized System (HS) Code
848120
Thread Sealant
Pre-Applied
Body Type
Straight (Brass)
Country of Origin
United States
Weight
0.23 lb
