800555

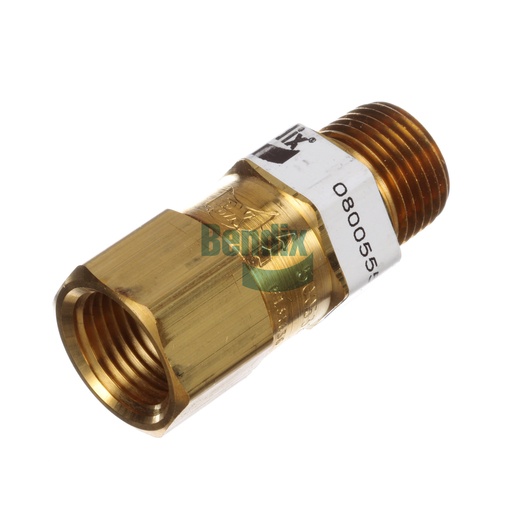

Single Check Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Single Check Valve is a vital component in the air brake system of commercial vehicles, designed to prevent backflow and ensure optimal brake pressure at all times. With a robust brass body and a maximum operating temperature of 250°F, this valve is engineered to withstand the rigors of heavy-duty applications. Its compact design allows for easy installation within the air brake system, while the precise manufacturing standards ensure reliability and performance. By maintaining consistent air pressure, the check valve significantly enhances braking efficiency and vehicle safety, making it a crucial addition to any commercial fleet. For those in search of high-quality Bendix parts, Source One Parts Center is your trusted source, providing only genuine OEM components.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-013: Check Valve - Air, Power Brakes
Inlet Port
1/2-14 NPT (Female)
Outlet Port
1/2-14 NPT (Male)
Height
25.4 mm (1.0 in)
Width
25.4 mm (1.0 in)
Maximum Operating Temperature
250 °F (121 °C)
Length
61.0 mm (2.4 in)
Harmonized System (HS) Code
848120
Thread Sealant
No Sealant
Body Type
Straight (Brass)
Country of Origin
United States
Orifice in Check Valve
Ø .110 IN
Weight
0.31 lb
