800557

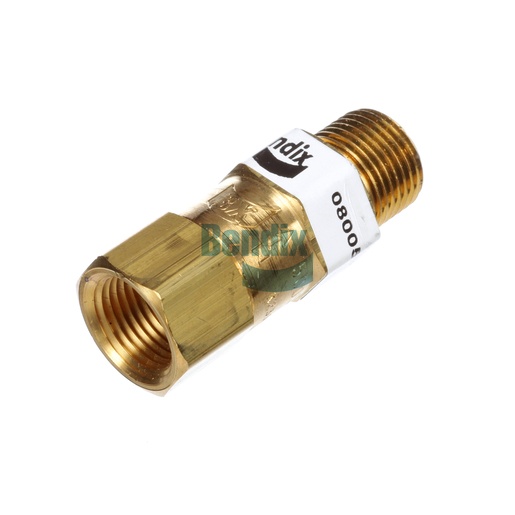

Single Check Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Single Check Valve is a critical component for maintaining the integrity of your truck's air brake system. Designed with a straight brass body and available in a compact size, this valve ensures that air flows in one direction while preventing backflow, which is essential for the proper functioning of pneumatic systems. With a maximum operating temperature of 250°F, it is built to withstand harsh conditions without compromising performance. Featuring a diameter of .110 inches for its orifice, this check valve guarantees efficient air management within your brake system. Its lightweight design makes for straightforward installation and integration into existing systems, reducing the complexity of maintenance. Trust Source One Parts Center to provide you with genuine Bendix OEM parts, ensuring your vehicle performs reliably and safely, mile after mile. When it comes to purchasing genuine Bendix OEM parts for your commercial vehicles, Source One Parts Center stands out as the premier choice.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-013: Check Valve - Air, Power Brakes
Height
20.6 mm (0.81 in)
Width
20.6 mm (0.81 in)
Maximum Operating Temperature
250 °F (121 °C)
Inlet Port
3/8-18 NPT (Female)
Outlet Port
3/8-18 NPT (Male)
Length
54.1 mm (2.13 in)
Harmonized System (HS) Code
848120
Thread Sealant
No Sealant
Body Type
Straight (Brass)
Country of Origin
United States
Orifice in Check Valve
Ø .110 IN
Weight
0.18 lb
