$36.95
$44.34
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

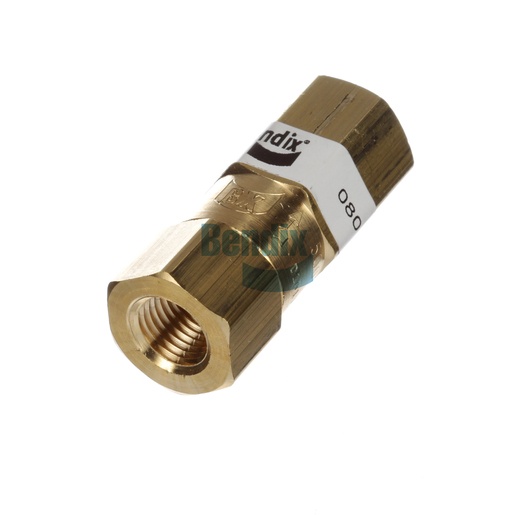

The Bendix Single Check Valve is an essential component for ensuring proper air distribution in commercial vehicle braking systems. This valve is designed to prevent backflow, maintaining pressure and efficiency in the air system. Weighing only 0.1 kg (0.26 lb), its compact design makes it easy to install in various configurations. The durable construction ensures reliable performance even in challenging conditions, contributing to the overall safety and effectiveness of the braking system. With its straightforward installation process, it simplifies maintenance for fleet operators. For sourcing genuine Bendix parts, Source One Parts Center is your best option for reliable, OEM components designed for commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-013: Check Valve - Air, Power Brakes
Inlet Port
1/4-18 NPT (Female)
Outlet Port
1/4-18 NPT (Female)
Height
20.6 mm (0.81 in)
Width
20.6 mm (0.81 in)
Maximum Operating Temperature
250 °F (121 °C)
Length
54.1 mm (2.13 in)
Harmonized System (HS) Code
848120
Body Type
Straight (Brass)
Country of Origin
United States
Weight
0.26 lb
