803161

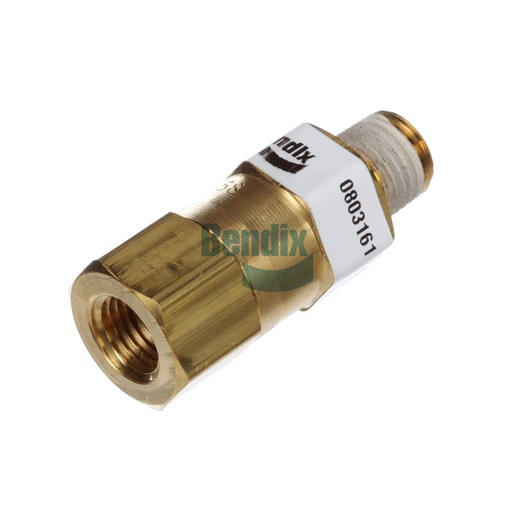

Single Check Valve
Bendix
IN STOCK
More than 10 are currently available
Ships within 1 business day
$50.95
$61.14
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix single check valve is a vital component in the air brake system, designed to prevent backflow and ensure consistent air supply to the braking system. With a compact design, this valve is straightforward to install and features a robust construction that can withstand the demands of commercial vehicle operations. It operates effectively across a wide range of temperatures, ensuring reliability in various conditions. Weighing only 0.1 kg, it is an essential part for maintaining the efficiency of your braking system, helping to enhance safety on the road. For reliable and genuine Bendix OEM parts, Source One Parts Center is the best choice for keeping your commercial vehicle in optimal condition.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-013: Check Valve - Air, Power Brakes
Inlet Port
1/4-18 NPT (Female)
Outlet Port
1/4-18 NPT (Male)
Height
20.6 mm (0.81 in)
Width
20.6 mm (0.81 in)
Maximum Operating Temperature
250 °F (121 °C)
Length
54.1 mm (2.13 in)
Harmonized System (HS) Code
848120
Thread Sealant
Pre-Applied
Body Type
Straight (Brass)
Country of Origin
United States
Orifice in Check Valve
Ø .078 IN
Weight
0.18 lb
