K022856

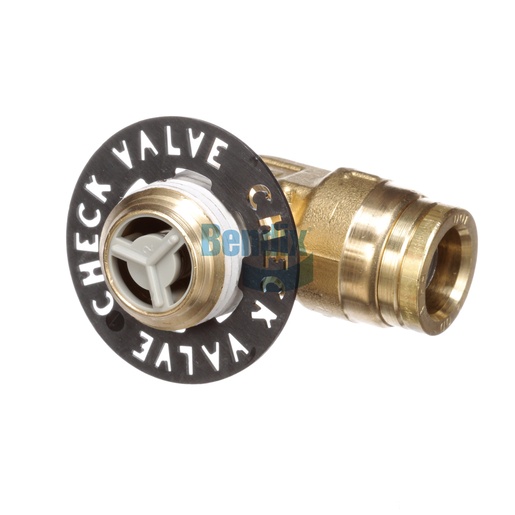

Single Check Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Single Check Valve by Bendix is a crucial component in your vehicle's air brake system, ensuring that air pressure is maintained where it is needed most. This valve is designed to prevent backflow, allowing for efficient operation of the braking system and enhancing overall vehicle safety. With its robust construction and precise engineering, this check valve is built to withstand the harsh conditions of commercial use, ensuring long-lasting performance. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is the ideal choice, providing high-quality components that meet stringent performance standards.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-013: Check Valve - Air, Power Brakes
Inlet Port
1/2 PTC
Outlet Port
1/2-14 NPT (Male)
Maximum Operating Temperature
250 °F (121 °C)
Harmonized System (HS) Code
848120
Body Type
90° Elbow (Brass)
Thread Sealant
Pre-Applied
Country of Origin
United States
Weight
0.24 lb
