800174

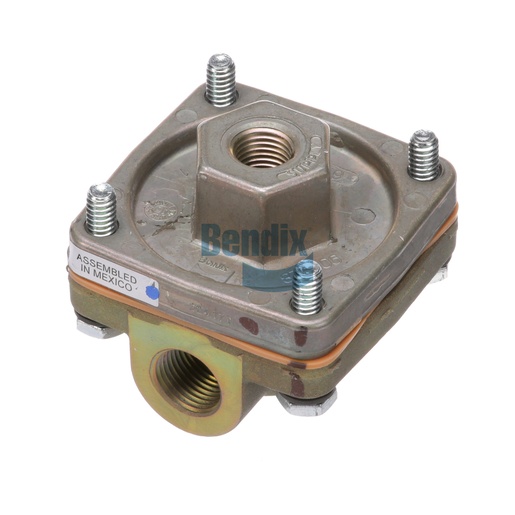

Cut-off Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Cut-off Valve from Bendix is a crucial component in the control systems of commercial vehicle braking setups. This valve is engineered for reliability, featuring a compact design that facilitates easy installation and maintenance. With an operating temperature range of -40°F to 200°F, it is built to perform effectively in various environments. The valve ensures precise control over air flow, contributing to the overall efficiency and safety of the braking system. For genuine Bendix OEM parts like the Cut-off Valve, look no further than Source One Parts Center, where quality and customer satisfaction are guaranteed.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Control Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port
3/8-18 NPT
Supply Port
3/8-18 NPT
Height
59.7 mm (2.35 in)
Length
63.5 mm (2.5 in)
Width
63.5 mm (2.5 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Mounting
Ø .34 IN (2x)
Weight
0.6 lb
