$154.95
$185.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

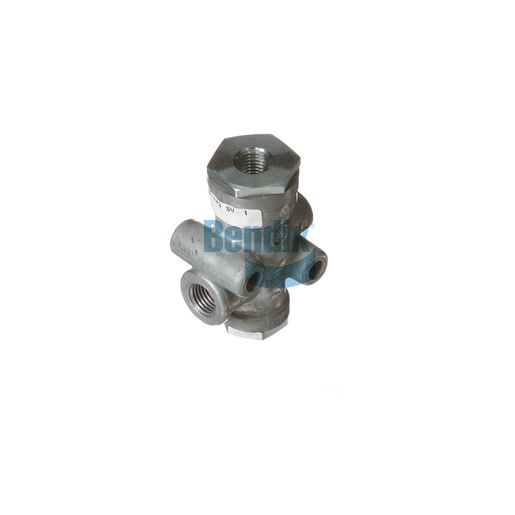

The Synchro Valve from Bendix is a critical component in managing air distribution in braking systems, ensuring that air pressure is effectively regulated for optimal brake performance. This valve is designed for precision and reliability, contributing to the overall safety of your vehicle by facilitating smooth and efficient braking action. Its robust construction allows it to endure the harsh conditions of commercial vehicle operation, ensuring long-lasting functionality. Regular maintenance and timely replacements of the synchro valve are vital for maintaining the integrity of your air brake system. For authentic Bendix OEM parts, Source One Parts Center is your best choice, ensuring quality and reliability with every purchase.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-011: Synchronizing Valve - Air Or Hydraulic
Control Port
1/4-18 NPT
Delivery Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Exhaust Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
35.1 mm (1.38 in)
Exhaust Opening Pressure (Common CON / SUP)
52.5 PSI
Length
57.2 mm (2.25 in)
Inlet Opening Pressure (Common CON / SUP)
62 PSI
Inlet Opening Pressure Ascending (Constant SUP / Variable CON)
71 PSI
Height
72.9 mm (2.87 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Mounting
Ø .28 IN (2x)
Weight
0.64 lb
