$209.95
$251.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

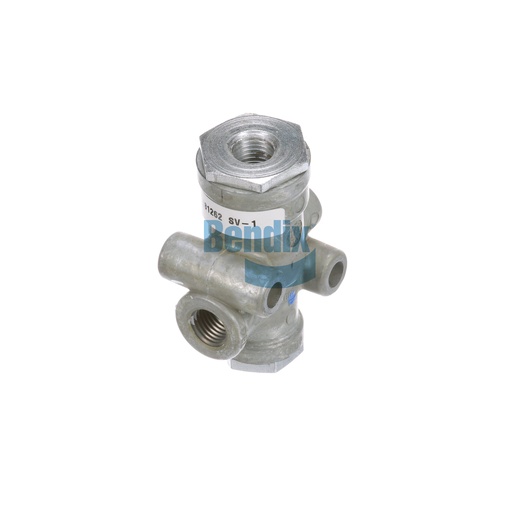

The Bendix Synchro Valve is a pivotal component in ensuring accurate control of air or hydraulic systems in commercial vehicles. This valve features multiple ports for efficient air delivery and exhaust, ultimately enhancing the precision of brake applications. With a robust design capable of withstanding temperatures from -40°F to 200°F, this valve is built to perform under the most demanding conditions. Its compact size and lightweight design (0.3 kg) make it easy to install without compromising functionality. By maintaining optimal control of air pressure, this valve contributes significantly to the safety and performance of your braking system. Trust Source One Parts Center for your genuine Bendix OEM parts to ensure your vehicle’s reliability and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-011: Synchronizing Valve - Air Or Hydraulic
Control Port
1/4-18 NPT
Delivery Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Exhaust Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
35.1 mm (1.38 in)
Inlet Opening Pressure Ascending (Constant SUP / Variable CON)
53 PSI
Length
57.2 mm (2.25 in)
Exhaust Opening Pressure (Common CON / SUP)
60 PSI
Height
72.9 mm (2.87 in)
Inlet Opening Pressure (Common CON / SUP)
75 PSI
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Mounting
Ø .28 IN (2x)
Weight
0.66 lb
