$119.95
$143.94
FINAL SALE. No returns or exchanges.

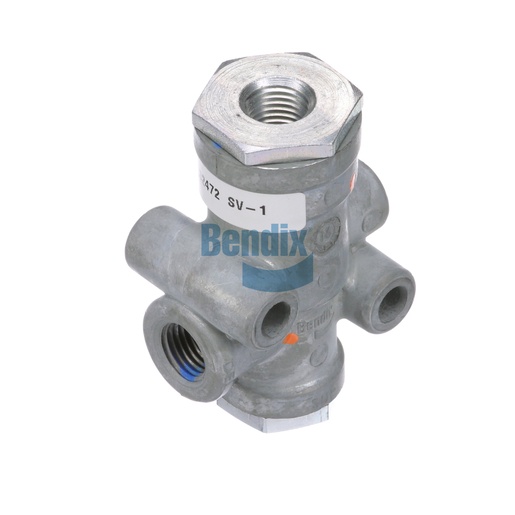

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix synchro valve is engineered to optimize the braking system's performance by ensuring proper synchronization between air and hydraulic systems. This component is crucial for improving response times and operational efficiency, making it an ideal choice for various commercial vehicle applications. With an ability to operate effectively in temperatures ranging from -40°F to 200°F, this valve is built to withstand extreme conditions while maintaining performance. Its durable construction and precise engineering ensure reliable functionality, reducing the risk of air leaks or system failures. Designed for straightforward installation, it allows maintenance teams to quickly replace worn-out components without extensive downtime. Source One Parts Center offers genuine Bendix OEM parts, ensuring you receive high-quality components that enhance your vehicle's reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-011: Synchronizing Valve - Air Or Hydraulic
Control Port
1/4-18 NPT
Delivery Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Exhaust Port
1/8-27 NPT
Exhaust Opening Pressure (Common CON / SUP)
11 PSI
Maximum Operating Temperature
200 °F (93 °C)
Inlet Opening Pressure (Common CON / SUP)
21 PSI
Width
35.1 mm (1.38 in)
Inlet Opening Pressure Ascending (Constant SUP / Variable CON)
38 PSI
Length
49.0 mm (1.93 in)
Height
72.9 mm (2.87 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Mounting
Ø .28 IN (2x)
Weight
0.64 lb
