$169.95
$203.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

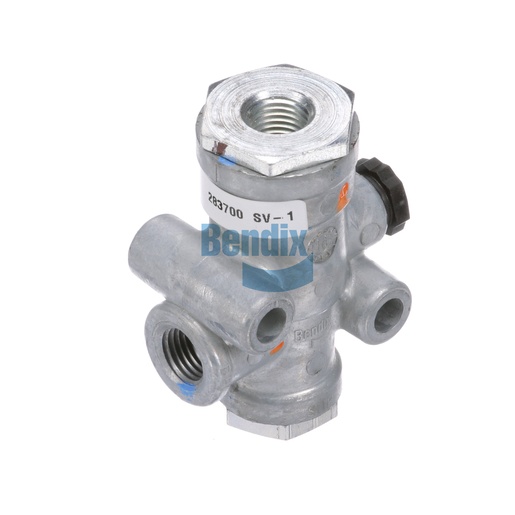

The Synchro Valve is an integral part of modern air and hydraulic braking systems, providing precise control over brake operations. Designed for high reliability, this valve helps synchronize the brake application, ensuring that the vehicle stops safely and effectively under various load conditions. Constructed from durable materials, it can withstand harsh operating environments, with a temperature range from -40°F to 200°F, ensuring consistent performance in extreme conditions. The valve’s compact size and lightweight design make it easy to install, while its multiple ports allow for flexible integration into your braking system. Trust in the performance of your braking system by choosing this essential component. When you're looking for high-quality Bendix products, Source One Parts Center is your best source for genuine OEM parts that guarantee optimal safety and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-011: Synchronizing Valve - Air Or Hydraulic
Control Port
1/4-18 NPT
Delivery Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Exhaust Port
1/8-27 NPT (w/ Breather)
Maximum Operating Temperature
200 °F (93 °C)
Width
35.1 mm (1.38 in)
Length
49.0 mm (1.93 in)
Exhaust Opening Pressure (Common CON / SUP)
52.5 PSI
Inlet Opening Pressure (Common CON / SUP)
62 PSI
Inlet Opening Pressure Ascending (Constant SUP / Variable CON)
71 PSI
Height
72.9 mm (2.87 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Mounting
Ø .28 IN (2x)
Weight
0.55 lb
