$114.95
$137.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

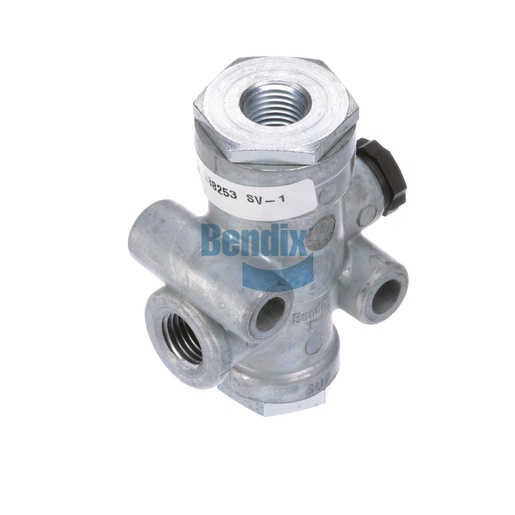

The Bendix synchro valve is a critical component in your vehicle's air brake system, designed to optimize the performance and control of air pressure. This valve features a compact design that allows for easy installation and effective operation, ensuring that air is delivered and exhausted precisely as needed for optimal braking performance. With a maximum operating temperature of 200°F, it is built to withstand the rigors of commercial vehicle operation. The synchro valve operates efficiently across a wide temperature range, from -40°F to 200°F, making it suitable for various climatic conditions. This reliability translates into enhanced safety and performance, allowing the driver to maintain full control during braking. When looking to purchase genuine Bendix OEM parts, Source One Parts Center is your go-to source for quality and reliability, providing the best options for maintaining your vehicle's braking system.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-011: Synchronizing Valve - Air Or Hydraulic
Control Port
1/4-18 NPT
Delivery Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Exhaust Port
1/8-27 NPT (w/ Breather)
Exhaust Opening Pressure (Common CON / SUP)
11 PSI
Maximum Operating Temperature
200 °F (93 °C)
Inlet Opening Pressure (Common CON / SUP)
21 PSI
Width
35.1 mm (1.38 in)
Inlet Opening Pressure Ascending (Constant SUP / Variable CON)
38 PSI
Length
56.9 mm (2.24 in)
Height
72.9 mm (2.87 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Mounting
Ø .28 IN (2x)
Weight
0.66 lb
