5000824N

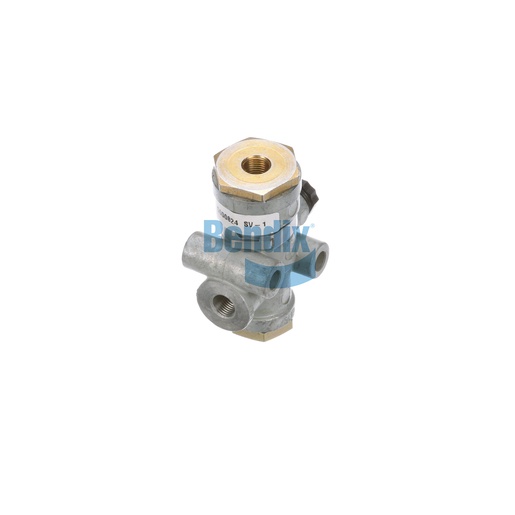

Synchro Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Synchro Valve is an essential control valve that plays a vital role in managing air flow in both air and hydraulic systems. This valve is engineered to ensure smooth operation and reliable performance, making it a key component in braking systems. With a robust design, it features multiple ports for supply and control, allowing for precise regulation of air pressure. The Synchro Valve operates effectively within a temperature range of -40°F to 200°F, ensuring reliability in various climates. Its lightweight construction facilitates easy installation and maintenance, making it a practical choice for technicians. When looking for genuine Bendix parts, Source One Parts Center is the best option, providing authentic components that guarantee compatibility and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-011: Synchronizing Valve - Air Or Hydraulic
Exhaust Port
1/8-27 NPT (w/ Breather)
Maximum Operating Temperature
200 °F (93 °C)
Exhaust Opening Pressure (Common CON / SUP)
28 PSI
Width
35.1 mm (1.38 in)
Inlet Opening Pressure (Common CON / SUP)
42 PSI
Length
56.9 mm (2.24 in)
Harmonized System (HS) Code
848120
Height
92.5 mm (3.64 in)
Control Port
M10 x 1-6H THD
Delivery Port
M10 x 1-6H THD
Supply Port
M10 x 1-6H THD
Country of Origin
Mexico
Mounting
Ø .28 IN (2x)
Weight
0.62 lb
